14 Nti Quartz Pom Hniav
Txoj kab uas hla 250mm / 300mm / 350mm / 400mm / 450mm / 500mm Tshwj xeeb pom hniav infrared choj txiav tshuab, rooj txiav tshuab, tes tuav
Hauj lwm lawm
Product Infor
Peb tsim 14inch quartz saw hniav rau ntau yam txiav tshuab. Peb muaj txoj kab uas hla 250mm / 300mm / 350mm / 400mm / 450mm / 500mm saw hniav. Peb kuj muaj tshwj xeeb saw hniav infrared choj txiav tshuab, rooj txiav tshuab, tes tuav, nrog puab qhov 25.4mm / 50mm / 60mm ib yam nkaus. Nws muaj zoo sharpness, xoom chipping thiab ruaj lub neej zoo.
Khoom specifications thiab parameters
Txoj kab uas hla (inch) | Txoj kab uas hla (mm) | Segment Loj (mm) | Cov naj npawb | Qhov (mm) |
10" | 250 | 40/42*2.8*10 | 17/18 | 25.4/50/60 |
12" | 300 | 40/42*2.8*10 | 21/22 | 25.4/50/60 |
14" | 350 | 40.5/43*3.0*10 | 25/26 | 25.4/50/60 |
16" | 400 | 40.5/43*3.0*10 | 29 | 50/60 |
18" | 450 | 40.5/43*4.0*10 | 32 | 50/60 |
20" | 500 | 40.5/43*4.0*10 | 36 | 50/60 |
Rau txawv specifications ntawm ntu uas tuaj yeem kho tau.
Cov yam ntxwv tseem ceeb
Ntsej muag: txo kab pace ib feeb
Txiav 20MM tuab quartz slab, txo qhov nrawm yog 4-5 meters ib feeb.
Lub neej: Kev ua neej nyob slicing yog txuam nrog hardness thiab thickness ntawm slicing slab thiab lub zog ntawm lub tshuab txo. Noj 350mm quartz hniav ua piv txwv, nws tuaj yeem txo txog 2000 meters.
Steel blanks ntawm saw hniav
 | Lub Hoobkas muaj nws tus kheej steel blanks ntau lawm rhiav, uas tuaj yeem txais cov khoom tshwj xeeb zoo li cov khoom customization (xws li lub hauv paus loj, zoo li, hniav zoo, nruab nrab qhov, thiab lwm yam). Steel Blank Hom: 1. Ib txwm Hlau Blank: 65Mn steel yog siv, uas muaj qhov zoo ntawm hardness siab, zoo hardenability, tsawg decarburization nyiam, thiab zoo machinability. 2. Silent Steel Blank: Cov ntawv hlau ntxiv rau cov txheej txheem tooj liab tuaj yeem txo cov suab nrov los ntawm cov saw hniav thaum txiav. |

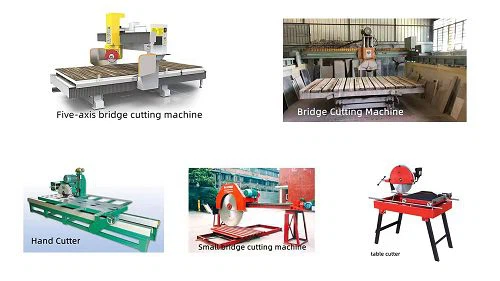

Cov cuab yeej siv tau
Cov khoom tuaj yeem siv rau ntau yam khoom siv: choj txiav tshuab, tes thawb txiav tshuab, infrared txiav tshuab, tsib-axis txiav tshuab thiab tes saws thiab lwm yam khoom siv pob zeb ua. |  |
Ntim thiab Shipping
| Cov khoom yuav zoo ntim rau hauv cartons kom paub tseeb tias cov khoom ruaj ntseg Peb xa koj cov khoom los ntawm Express / tsheb ciav hlau / huab cua / nkoj |
Lub hauv paus ntsiab lus ntawm kev siv kom raug
1. Ua ntej siv cov saw saw, xyuas seb nws puas puas lawm. Yog hais tias nws puas lawm, nws yog nruj me ntsis txwv tsis pub siv. Tag nrho cov tshuab txiav yuav tsum tau nruab nrog lub hau tiv thaiv. 2. Ceev nrooj thiab nruab cov saw hniav vim qhov kev taw qhia ntawm kev sib hloov tau qhia. Tsis txhob txiav cov kab nkhaus, txiav muaj zog, thiab overheating txiav. 3. Tus neeg teb xov tooj yuav tsum hnav tsom iav tiv thaiv, tiv thaiv lub ntsej muag, khaub ncaws ua haujlwm, khau tiv thaiv thiab lwm yam khoom siv tiv thaiv kev ua haujlwm. 4. Cov saw saw sib txuas yuav tsum raug xaiv raws li kev ua haujlwm ntawm lub pob zeb. 5. Siv dej txias thaum txiav. Tsis muaj cov cai tshwj xeeb rau cov dej zoo. Cov dej tseem ceeb yuav tsum tau lav, txwv tsis pub nws yuav cuam tshuam rau lub neej thiab kev ua kom zoo ntawm cov saw hniav. 6. Lub sawb yuav npub thaum lub sij hawm txiav. Thov grind thiab sharpen cov hniav ntawm silicon carbide sib tsoo log los yog refractory cib. |
|
Dab tsi yog qhov zoo tshaj plaws hniav rau txiav quartz?
Quartz yog ib qho khoom siv nyuaj heev los txiav, vim nws qhov ntom ntom. Lub quartz tsuas yog txiav nrog cov hniav tshwj xeeb uas tsim nyog rau kev txiav cov khoom nyuaj. Peb ib txwm xaiv pob zeb diamond saw hniav, vim tias nws qhov hardness siab dua li ntawm quartz pob zeb, kom cov quartz tuaj yeem txiav tau yooj yim. Dhau li ntawm quartz, nws tseem tuaj yeem txiav marble, granite ib yam nkaus.Ntxiv rau, quartz aslo tuaj yeem txiav los ntawm iav lub tog raj kheej. Lub iav lub tog raj kheej txiav yog ntse heev, thiab nws tuaj yeem txo qhov poob ntawm quartz. Tom qab ntawd, peb tuaj yeem siv lub pob zeb diamond kaum sib tsoo disc lossis lub tiaj tiaj sib tsoo tsis siv lub tshuab sib tsoo rau kev sib tsoo. Sab nraud txoj kab uas hla yuav tsum yog 10 cm thiab sab hauv txoj kab uas hla yog 1.6 los yog 2 cm. Raws li qhov sib txawv roughness ntawm quartz pob zeb nto, peb xaiv qhov sib txawv lub zog ntawm kev sib tsoo disc, thiaj li ua kom cov nyhuv zoo dua hauv kev txiav thiab sib tsoo.
FAQ
1. Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
Peb yog Hoobkas. Peb muaj kev paub zoo hauv kev tsim cov pob zeb diamond saw hniav.
2. Puas muaj nqi pheej yig shipping rau peb lub teb chaws?
Rau kev txiav txim me me, Kev nthuav qhia yuav yog qhov zoo tshaj plaws, Thiab rau kev txiav txim ntau, txoj kev nkoj hiav txwv yog qhov zoo tshaj plaws tab sis siv sijhawm ntev dua. Rau kev txiav txim ceev,
peb qhia ntawm huab cua mus rau tshav dav hlau lossis los ntawm Express xa tuaj rau koj lub qhov rooj
3. Qhov zoo ntawm St. Bairui yog dab tsi?
1). Thawj tus nqi R & D cov neeg ua haujlwm hauv cov cuab yeej pob zeb diamond.
2). Long-tested thiab dav-pom zoo cov khoom.
3). Cov cuab yeej siv siab heev
4). Self-muaj steel core rhiav.
5). Kev lag luam siab hauv kev lag luam hauv domestic.
